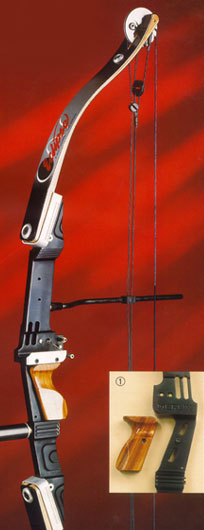

Eclipse (1993-1995)

Optimum balance has been achieved by geometrically centering the balance and pressure points of in the system. By offsetting the grip by 2mm puts the bowstring in direct line of the pressure translated to the bow, and by lowering the grip balances the angles of the bowstring making a steadier aiming bow.

A deflex riser design, CNC machined from a solid billet of HE30TF aluminium. The most forgiving style for accuracy.

Axle Length --- 45"
Brace Height --- 8.75"(approx)
Mass Weight --- 4lb 10oz
IBO Speed --- N/A
Cam Type --- 65% round step
Limb Options --- Wood Laminated
Draw Lengths --- 24-32"
Draw Weights --- 30, 40,50,60,70,80
